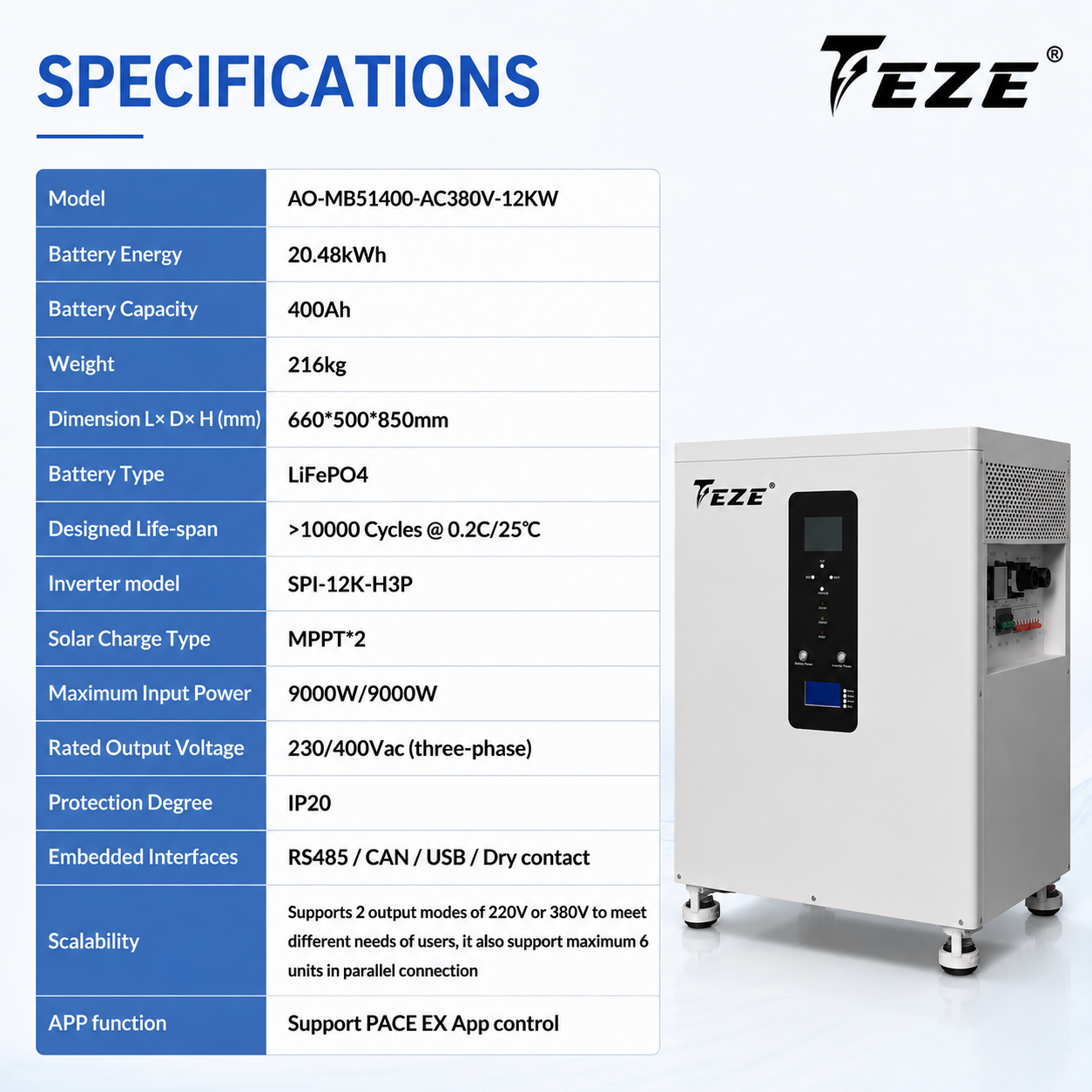

| BATTERY TECHNICAL SPECIFICATION | ||
| Battery model | TEZE-AO-MB51300-AC380V-10KW-HWB | TEZE-AO-MB51400-AC380V-10KW-HWB |
| Number of batteries | 1 | 1 |
| Battery Energy | 15.36kWh | 20.48kWh |
| Battery Capacity | 300AH | 400AH |
| Weight | Net weight: 175Kg Gross weight: 190Kg |
Net weight: 220Kg Gross weight: 238Kg |
| Dimension H× L× W (mm) | 700x660x470 mm | 900×600×470 mm |
| Battery Type | LiFePO4 | |
| Cell Grade | Grade A+ | |
| Battery Rated Voltage | 51.2V | |
| Battery Working Voltage Range | 44.8 ～ 57.6V | |
| Maximum Charging Current | 200A | |
| Maximum Discharging Current | 200A | |
| Max.Pulse Current |
400A(<1S) | |
| DOD | 80% | |
| Designed Life-span | >6000 Cycles @ 0.2C/25℃ Charging/Discharging at 80%DOD, Until 80% Capacity. | |
| Temperature-controlled fire extinguisher |
YES | |
| Active Balancer |
YES | |
| INVERTER TECHNICAL SPECIFICATION | ||
| Inverter model | ASF48100SH3 | |
| PV CHARGE | ||
| Solar Charge Type | MPPT | |
| Maximum Output Power | 7500W/7500W | |
| PV Charging Current Range | 22A+22A | |
| PV Operating Voltage Range | 800Vdc/800Vdc | |
| MPPT Voltage Range | 200-650Vdc | |
| AC CHARGE | ||
| Frequency Range | 50/60Hz | |
| Input Voltage Range | phase voltage 170~280V, line voltage 305~485V | |
| Bypass Overload Current | 63A | |
| AC OUTPUT | ||
| Rated Output Power | 10000W | |
| Max. Peak Power | 20000W | |
| Rated Output Voltage | 230/400Vac (three-phase) | |
| Load Capacity of Motors | 6HP | |
| Rated AC Frequency | 50/60Hz | |
| Waveform | Pure Sine Wave | |
| Switch Time | 10ms（typical） | |
| BATTERY INVERTER OUTPUT | ||
| Rated Output Power | 10000W | |
| Maximum Peak Power | 20000W | |
| Power Factor | 1 | |
| Rated Output Voltage (Vac) | 230/400Vac (three-phase) | |
| Frequency | 50Hz ± 0.3Hz/60Hz ± 0.3Hz | |
| Auto Switch Period | ＜15ms | |
| THD | ＜3% | |
| GENERAL DATA | ||
| Protection Degree | IP20, Indoor Only | |
| Operating Temperature Range | -15~55℃,>45℃ derated | |
| Noise | <60dB | |
| Cooling Method | Internal Fan | |
| Warranty | 5 Years | |
