Specification
Battery brand: CALB
Battery model: L173F230
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: 230Ah
AC. 1kHz Impedance Resistance: ≤0.3mΩ (Fresh Cell, 30% SOC)
Weight: 4.17±0.16kg
Dimensions L*W*H (mm): 207.2(with Pole)*173.9*53.72

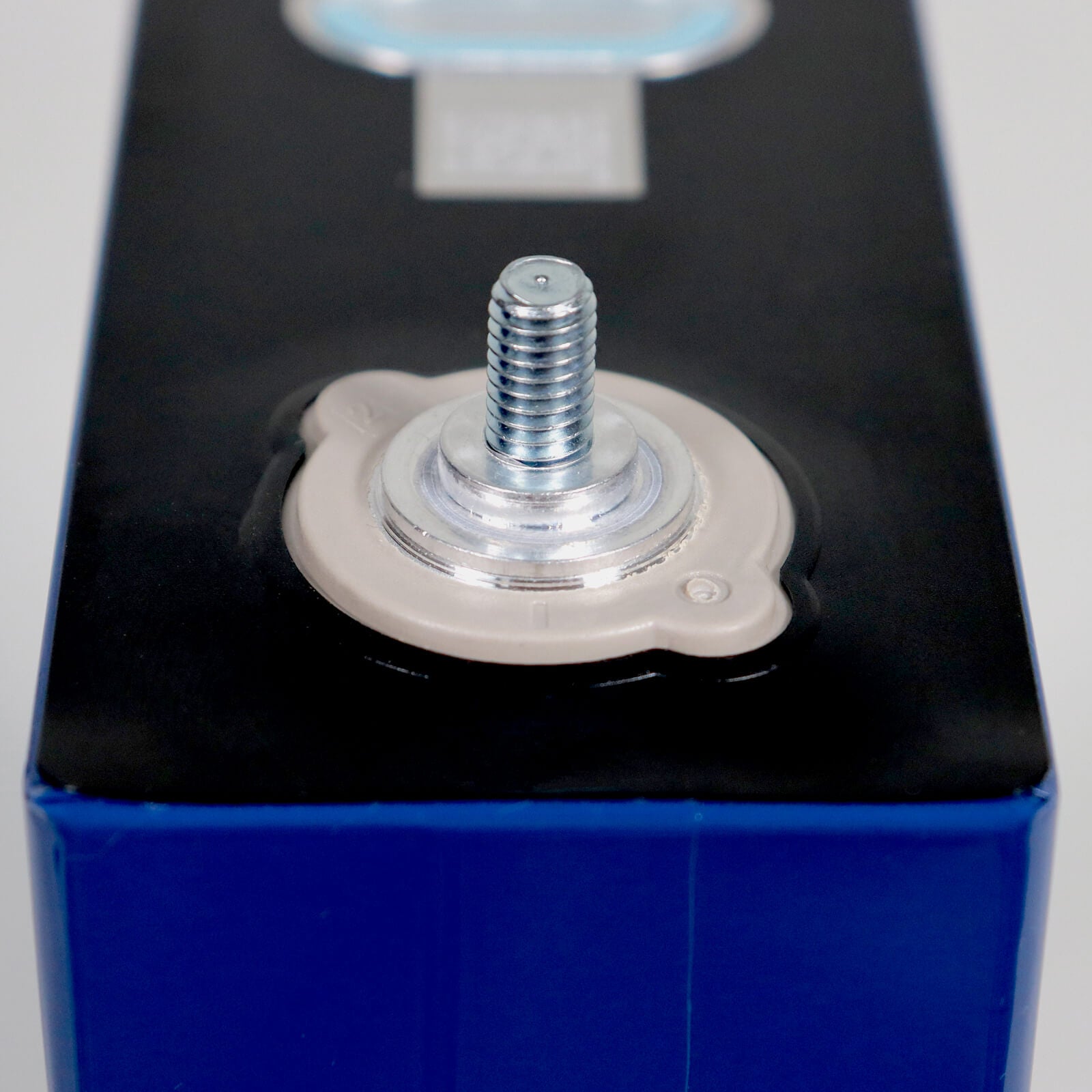

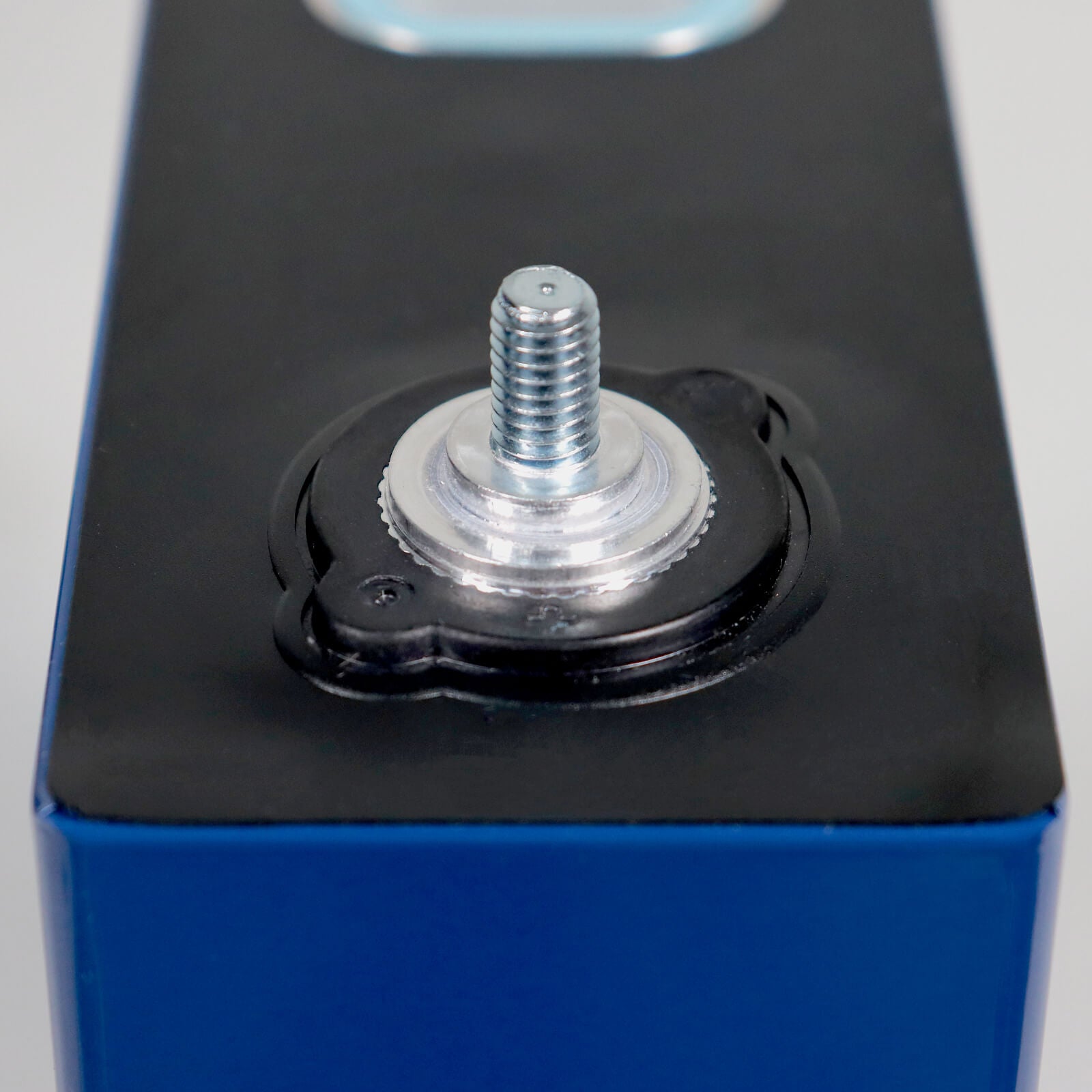

Terminal: M6 Screw Hole
Cycle life: ≥4000Cycles(1C/1C, 25±5°C, SOC 80%)
Standard Charge/Discharge Current: 1C/1C
Standard Charge/Discharge Cut-off Voltage: 3.65V/2.5V
Continuous Charge/Discharge Current: 1C/1C
Max Pulse Charge/Discharge Current(10s): 690A/690A
Recommended SOC window: 10%～90%
Charging Temperature: 0℃~55℃
Discharging Temperature: -36℃~65℃
Storage Temperature: -20°C~45°C
Download Document:
CALB 230Ah LiFePO4 Cell Product Specification
Product Application:
Electric vehicles, RV, electric bicycles/scooters, golf carts, boats, trolling Motor, off-gird solar energy storage, and ESS.
Product Feature:
- Highly automated production equipment to ensure battery consistency.
- Square aluminum shell structure, high-precision explosion-proof valve design, good safety performance.
- Low internal resistance, high discharge rate, and stable discharge platform.
- Green environment, ISO14000 approval, products that meet GB and UN criteria, and ROHS compliant.
- Long cycle life.
NOTE!
1. One Cell will come with 1 busbar, 2 screw caps, 2 shims for free. (e.g. 4 pcs Cells will come with 4 pcs busbars, 8 pcs screw caps and 8 pcs shims. )
2. Each cell shall be used under strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage. | FAQ: LiFePO4 battery charging guide.
4. We will match (capacity, voltage, resistance) all cells before delivery.
5. The battery is suitable for DIY lovers with experience.
