Specification

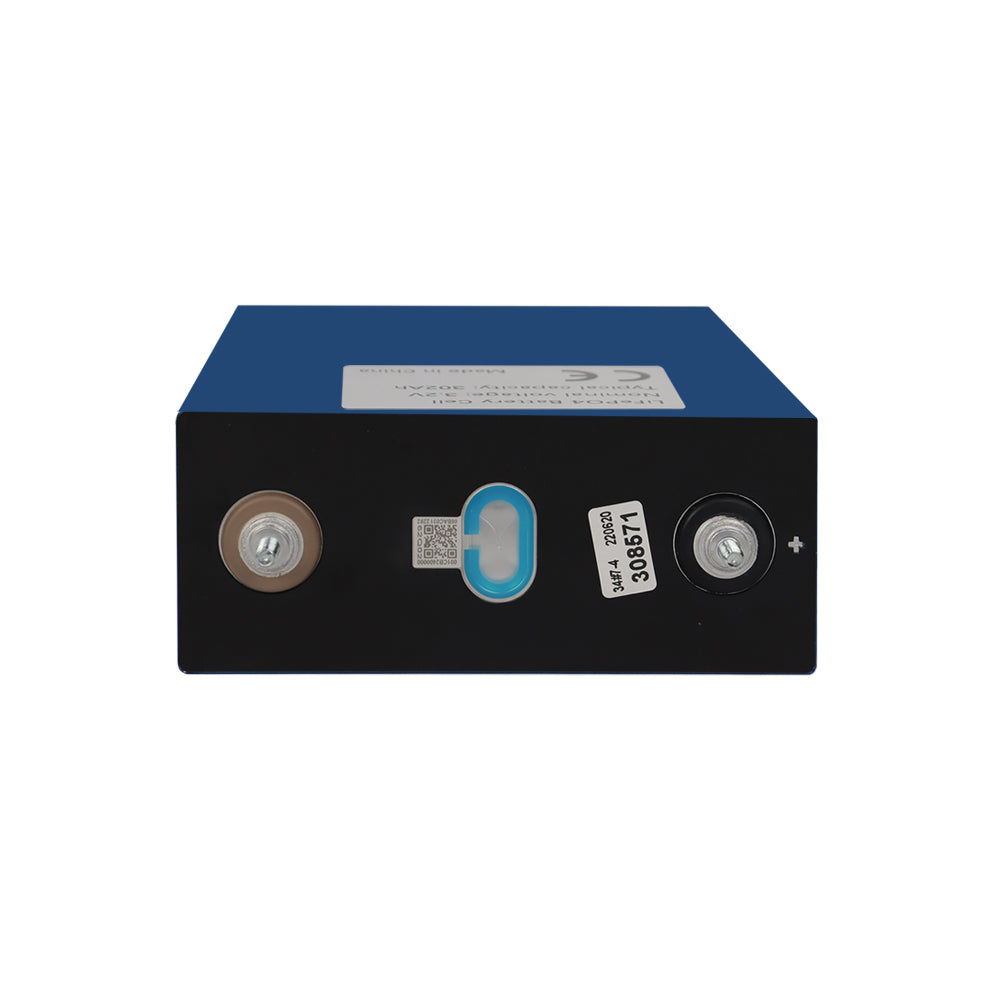

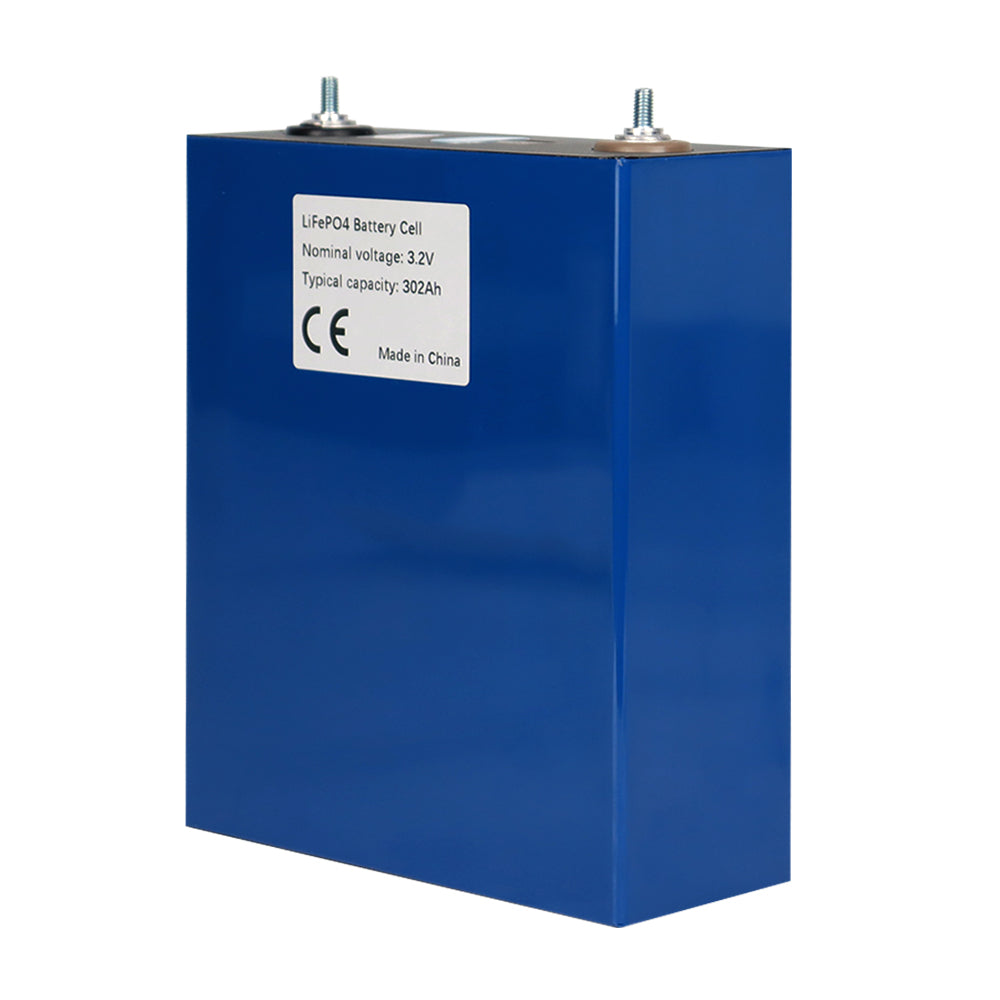

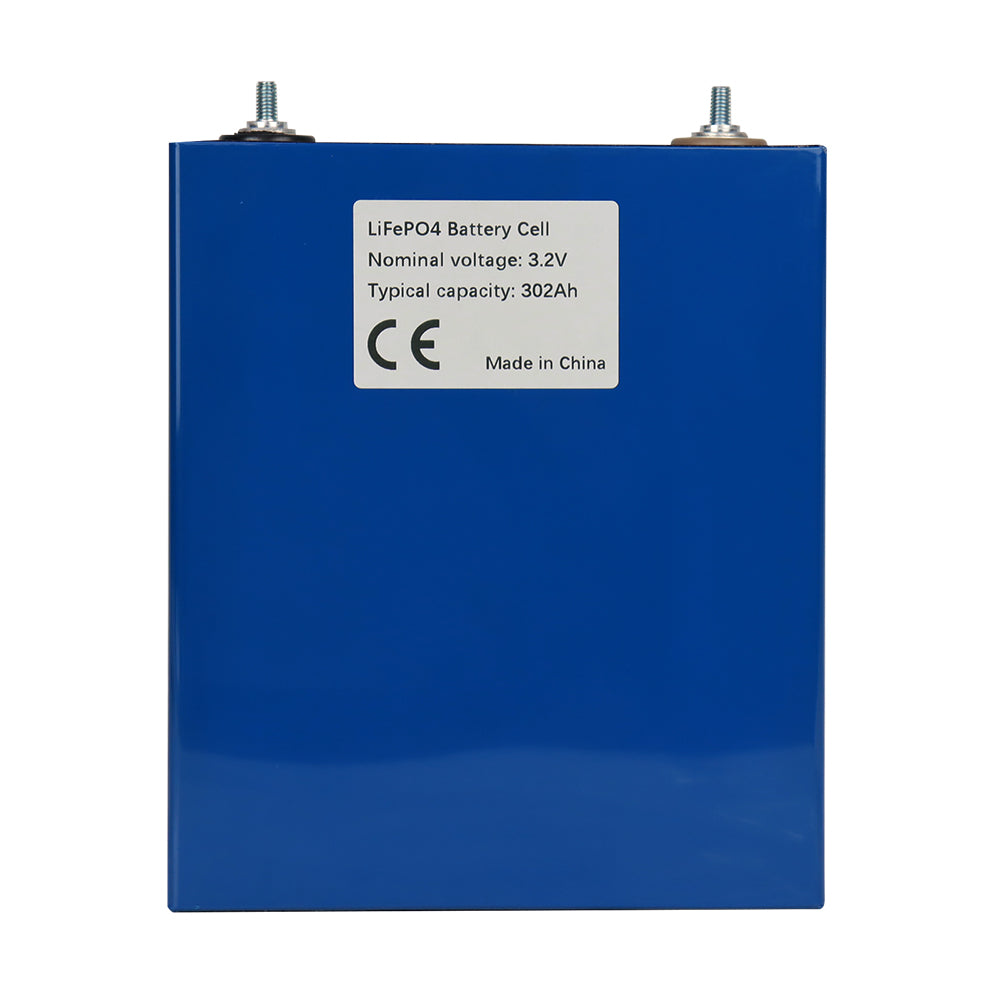

Cell Brand: CATL
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal Voltage: 3.2V
Operational Voltage: 2.5V – 3.65V
Nominal Capacity: 302Ah
Impedance (1KHz): ≤0.18±0.05mΩ
Weight: 5.51±0.3kg
Dimensions (mm): 207.2*173.93*71.65±0.5mm
Terminal: M6 Laser Welding Screw Hole
Cycle Performance: ≥4000 Cycles(0.5C/0.5C, 25±2°C, SOC≥80%)
Standard Charge/Discharge Current: 0.5C/0.5C
Standard Charge/Discharge Cut-off Voltage: 3.65V/2.5V
Max Continuous Charge/Discharge Current: 1C/1C
Recommended SOC window: 10%～90%
Residual Capacity Loss: Per month ≤3.5%
Charging Temperature: 0℃~65℃
Discharging Temperature: -30℃~65℃
Storage Temperature: -30~60°C
Document Download:
CATL 302Ah LiFePO4 Battery Cell Product Specification.pdf
Product Application:
Electric vehicle, RV, electric bicycles/scooters, golf carts, boats, trolling Motor, off-gird solar energy storage, and ESS.
NOTE!
1. One Cell will come with 1 busbar, 2 screw caps, 2 shims for free. (e.g. 4 pcs Cells will come with 4 pcs busbars, 8 pcs screw caps and 8 pcs shims. )
2. Each cell shall be used under the strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage. | FAQ: LiFePO4 battery charging guide.
4. The battery is suitable for DIY lovers with experience.
