Support Inverter Brand: GROWATT、Deye、GOODWE、VICTRON、SOFAR、SRNE、VOLTRONIC POWER, Etc. (If you would like to learn more about inverter brands that are compatible with this battery, please contact me directly for more detailed information.)
Battery Testing Videos ↓
Features
◆The use of lithium iron phosphate core technology, higher safety, 80% DOD charge
and discharge under standard conditions, more than 6000 times cycle.
◆Highly integrated analog front-end, isolated power supply circuit integrated serial IC,
high voltage accuracy (≤20mV), high current accuracy (≤2%@FS).
◆4-way battery temperature detection (≤2℃), SOC estimation function, SOH
estimation function Short-circuit protection, adjustable over-current protection,
multiple sleep and wake-up modes, low power consumption, and low power consumption.

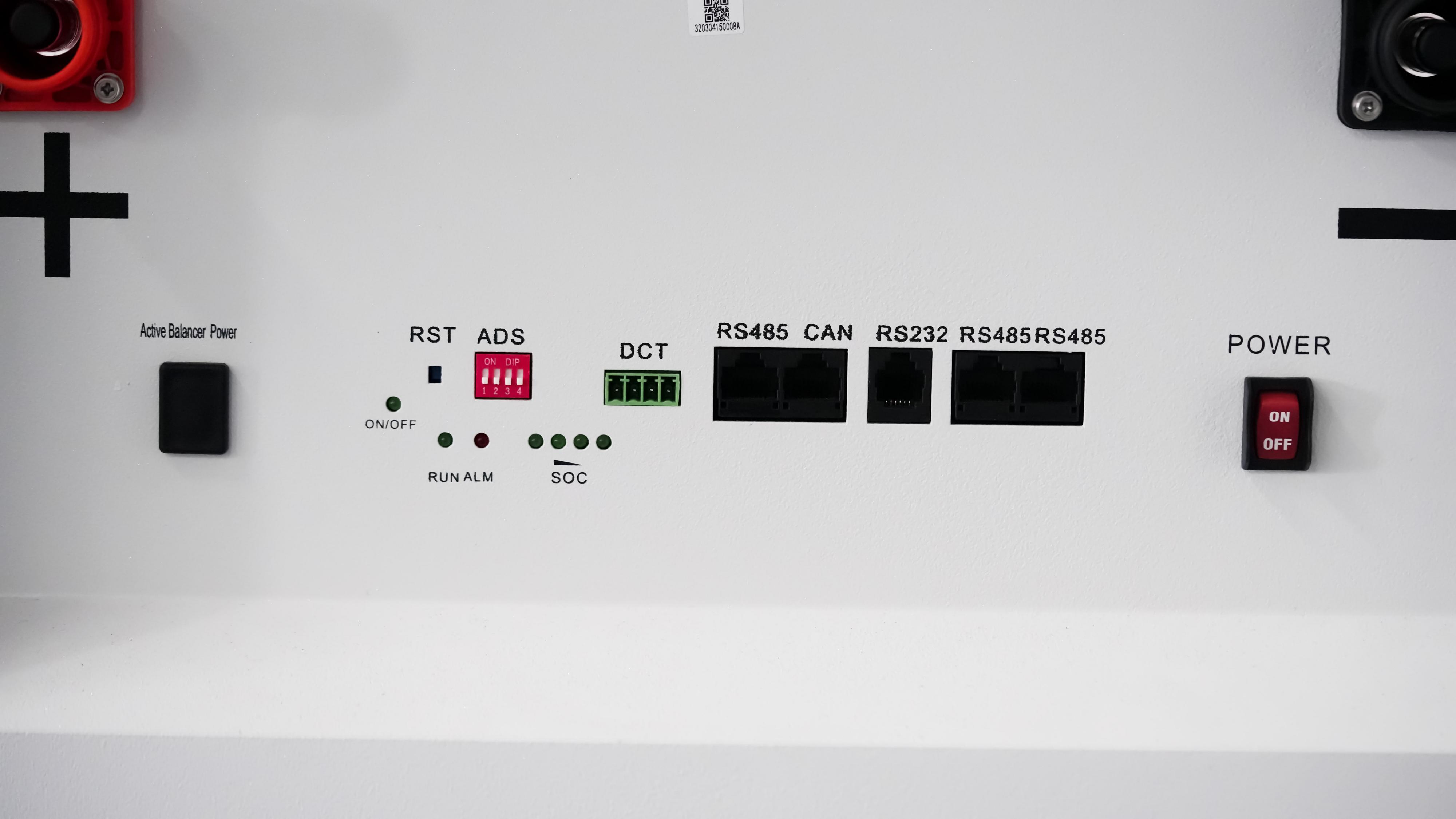

◆Dual RS485 communication, adjustable parameter setting, buzzer alarm function, LED status
indication function, with charging balance function.
◆Wide temperature range: -20℃~60℃.

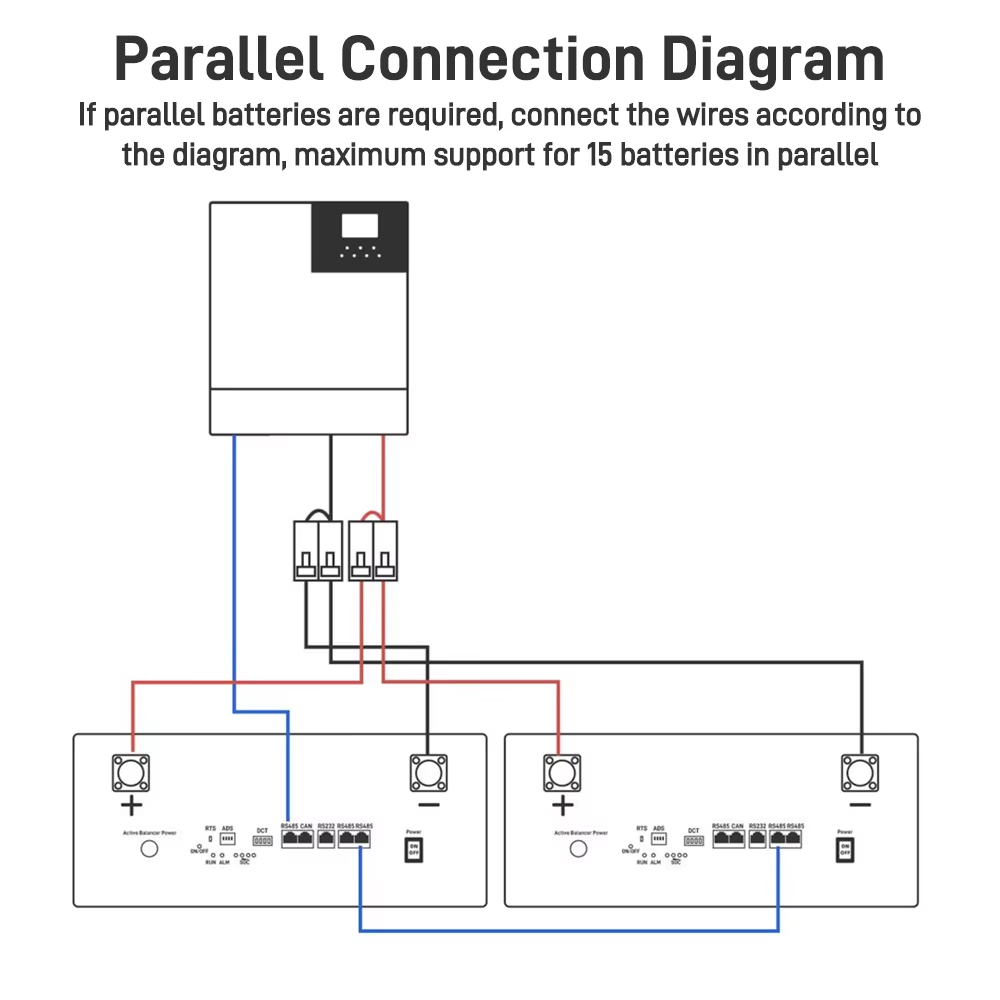

◆Support parallel connection (up to 15 groups) for application expansion, not recommended for
series connection.
General Specifications
| MODEL | TEZE-MB51.2V600Ah-300A-HWB | TEZE-MB51.2V560Ah-300A-HWB | TEZE-MB51.2V600Ah-200A-HWB | TEZE-MB51.2V560Ah-200A-HWB |
| MAIN INFO | ||||
| Rated Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Rated Capacity | 600Ah | 560Ah | 600Ah | 560Ah |
| Battery Power | 30.72kWh | 28.67kWh | 30.72kWh | 28.67kWh |
| Max.output power | 15000W | 15000W | 10000W | 10000W |
| Battery Type | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 |
| Cycling Lifespan | >6000(80%DOD,0.2C,25℃) | >6000(80%DOD,0.2C,25℃) | >6000(80%DOD,0.2C,25℃) | >6000(80%DOD,0.2C,25℃) |
| CHARGE/DISCHARAGE | ||||
| Max.ChargingVoltage | 57.6V | 57.6V | 57.6V | 57.6V |
| Discharging Cut-off Voltage | 43.2V | 43.2V | 43.2V | 43.2V |
| charging mode | CC/CV | CC/CV | CC/CV | CC/CV |
| Max.Charging Current | 300A | 300A | 200A | 200A |
| Max.Pulse Current | 350A(<3S) | 350A(<3S) | 250A(<3S) | 250A(<3S) |
| GENERAL | ||||
| Dimension(L*W*H) | 500*700*730mm | 500*700*730mm | 500*700*730mm | 500*700*730mm |
| Communication | RS485、RS232、CAN、WiFi | RS485、RS232、CAN、WiFi | CAN/RS485/RS232 | CAN/RS485/RS232 |
| Storage Condition | 6 months@25℃/77°F,3months@35℃/95°F,1 month@45℃/113F | |||
| Charging Temp.Range | 0°C to 45°C (32°F to 113°F) @60±25% relative humidity | |||
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) @60±25% relative humidity | |||
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) @60±25% relative humidity | |||
| Support Inverter Brand | Growatt、Deye、Goodwe、voltronic、Sofar、VICTRON、Megarevo、SRNE、PYLON、Luxpowertek、Sorotec、SMA、GINLONG、MUST、TBB、STUDER | |||
| Line Joint | 350A Self-Locking Fitting Quick Release connector | 350A Self-Locking Fitting Quick Release connector | 250A Self-Locking Fitting Quick Release connector | 250A Self-Locking Fitting Quick Release connector |
| Protection Grade | IP22 | IP22 | IP22 | IP22 |
| certification | CE/UN38.3 | CE/UN38.3 | CE/UN38.3 | CE/UN38.3 |
Precautions
• No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
• Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuits.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Prohibited Matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, or electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, and wires).
