JK-Energy-Storage-Series-BMS-Specification-V19-0-1.pdf

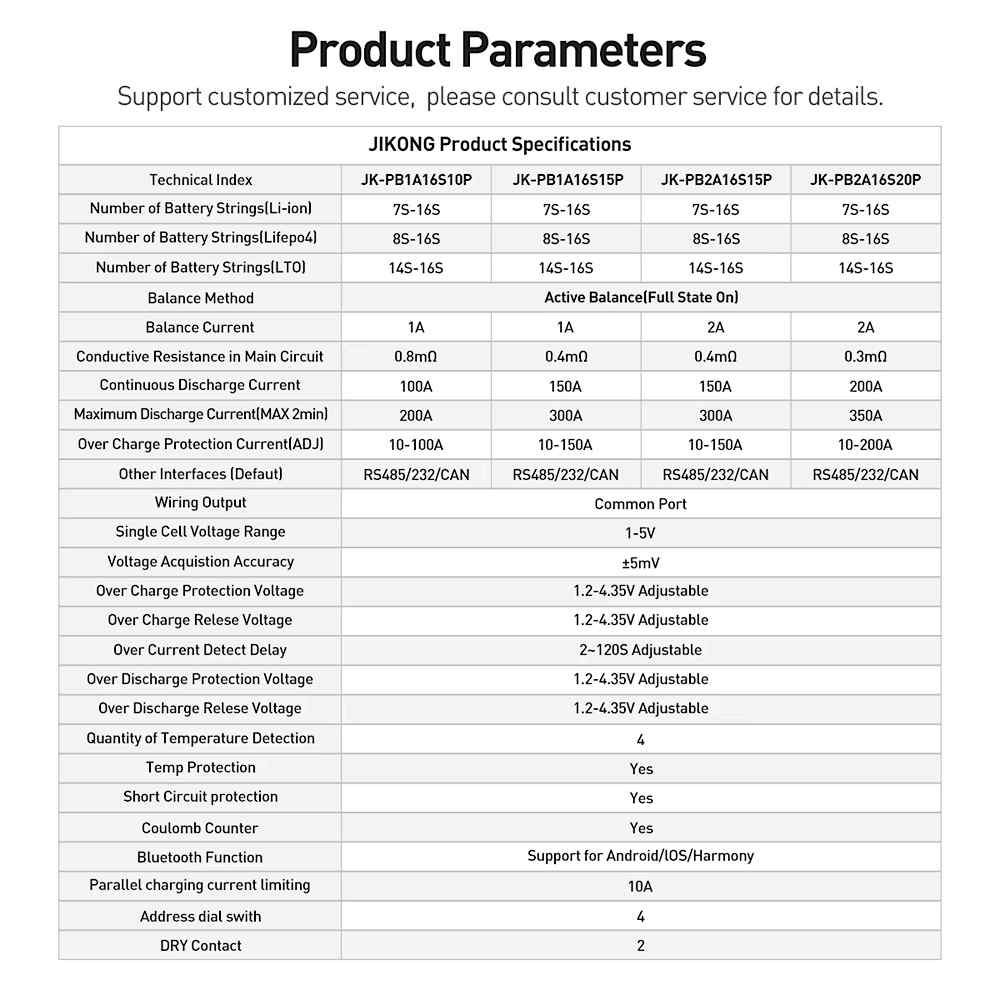

Specification(JK-PB2A16S20P) Battery type and serial number:LFP(16S)
Continuously charging/discharging current: 200A

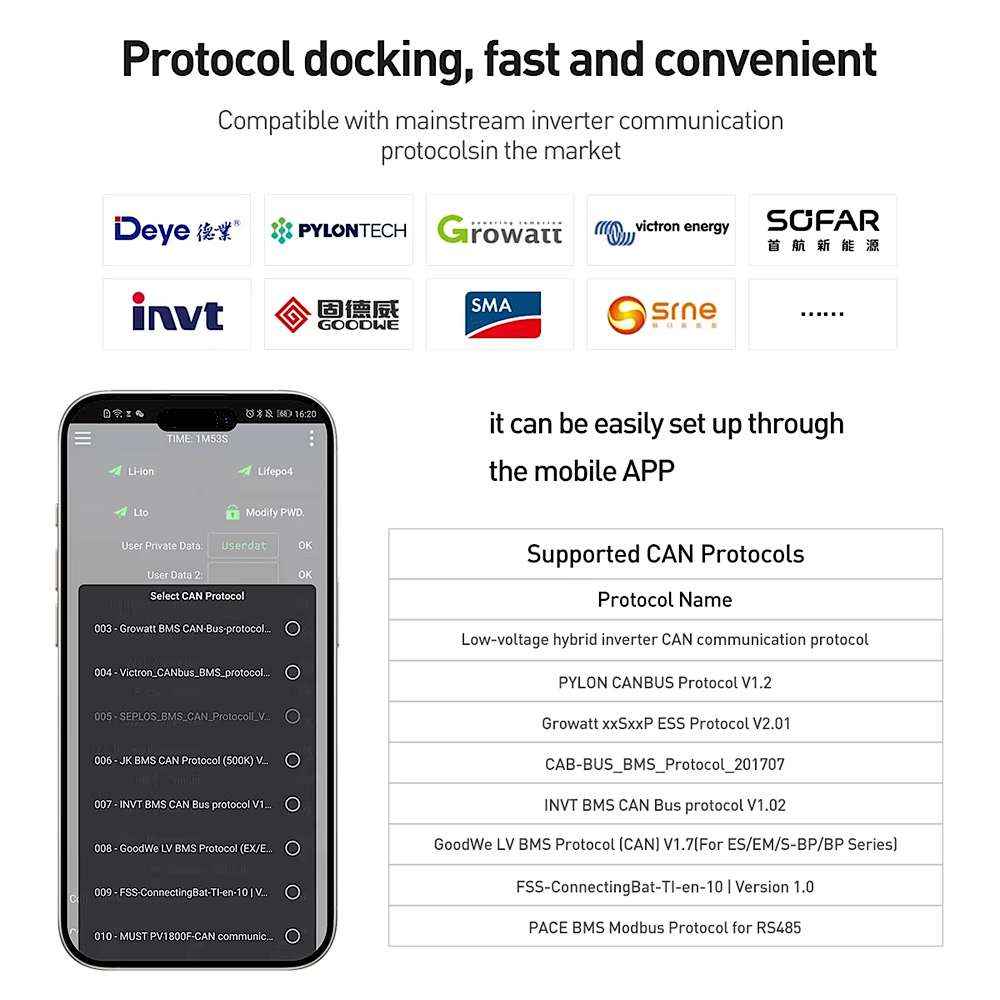

Communication protocol: accept RS232/RS485/CAN
Working temperature:-20℃-70℃
Active Balance:2A(Max)
Conductive Resistance in Main Circuit:0.65mΩ
Over Charge Protection Current(AD):10A-200A (Adjustable)
Individual voltage range:1-5 V
Voltage acquisition accuracy:±5mV
Overcharge protection voltage:1.2V~4.35V (Adjustable)
Overcharge release voltage:1.2V~4.35V (Adjustable)
Overcurrent release time:2~120 (Adjustable)
Over-discharge protection voltage:1.2V~4.35V (Adjustable)
Number of battery temperature probes:4
Bluetooth function: Supports Android, Apple
Parallel charging current limiting:10A
