Note Two Style when Ordering:
- "Normal" BMS is No Bluetooth.
- "Smart" BMS Have Bluetooth.
Please make sure to choose the correct specification as I will ship according to your selection. This specification is unrelated to the "Smart" label on the casing.
Free Shipping and Free Tax
The Selling Price is the final price! Free shipping, Tax-free, Free customs duties, Free any other miscellaneous fees. You don't need to pay any additional fees. Just wait at home for the goods to be delivered and sign for them upon receipt.
No tax is collected, and you do not need to pay any additional taxes.
Features
◆Using the technology of Sodium-ion cells, superior safety, thousands of cycles, 100%DOD, under normal conditions.
◆Built-in automatic protection for over-charge, over-discharge, over current, and over temperature.
◆Free of maintenance.
◆Internal cell balancing.
◆Lighter weight: About 40% ~50% of the weight of a comparable battery.
◆Replacement for lead-acid battery.
◆Wider temperature range:-30℃~60℃.
◆Support for Series application expansion (up to 48V) or Multiple groups in parallel.
Application
◆UPS
◆Solar &Wind Power System
◆Golf Cart
◆Electric Vehicle, E-bike, E-rickshaw etc.
◆Lighting
General Specifications
| Electrical Characteristics | Nominal Voltage | 12V | |
| Nominal Capacity | 200Ah@0.2C | ||
| Energy | 2400Wh | ||
| Internal Resistance | ≤30mΩ | ||
| Cycle Life | >3000 Cycles @ 0.2C/25℃ Charging/Discharging at 100%DOD,Until 80% Capacity. | ||
| >6000 Cycles @ 0.2C/25℃ Charging/Discharging at 80%DOD,Until 80% Capacity. | |||
| Self Discharge | ≤3.5% per month at 25℃ | ||
| Standard Charging | Max.Charging Voltage | 15.8V | |
| Charging Mode | At 0℃~55℃ temperature, charged to 15.8V at a constant current of 40A, and then, changed continuously with constant voltage of 15.8V until the current was not more than 4A | ||
| Charging Current | 40A | ||
| Max.Charging Current | 200A | ||
| Standard Discharging | Discharging Current | 40A | |
| Max. Continuous Current | 200A | ||
| Max.Pulse Current | 400A(<3S) | ||
| Discharging Cut-off Voltage | 8.0V | ||
| Operating Condition | Charge Temperature | 0℃ to 55℃ @60±25% Relative Humidity | |
| Discharge Temperature | -30℃ to 60℃@60±25% Relative Humidity | ||
| Storage Temperature | 0℃ to 45℃ @60±25% Relative Humidity | ||
| Water Dust Resistance | IP65 | ||
| Structure | Cell & Format | NaFR4S2P | |
| Casing | Plastic | ||
| Dimension(L*W*H*TH) | 522×269×220mm | ||
| Weight | Approx. | Kg | |
| Terminal | M8 | ||

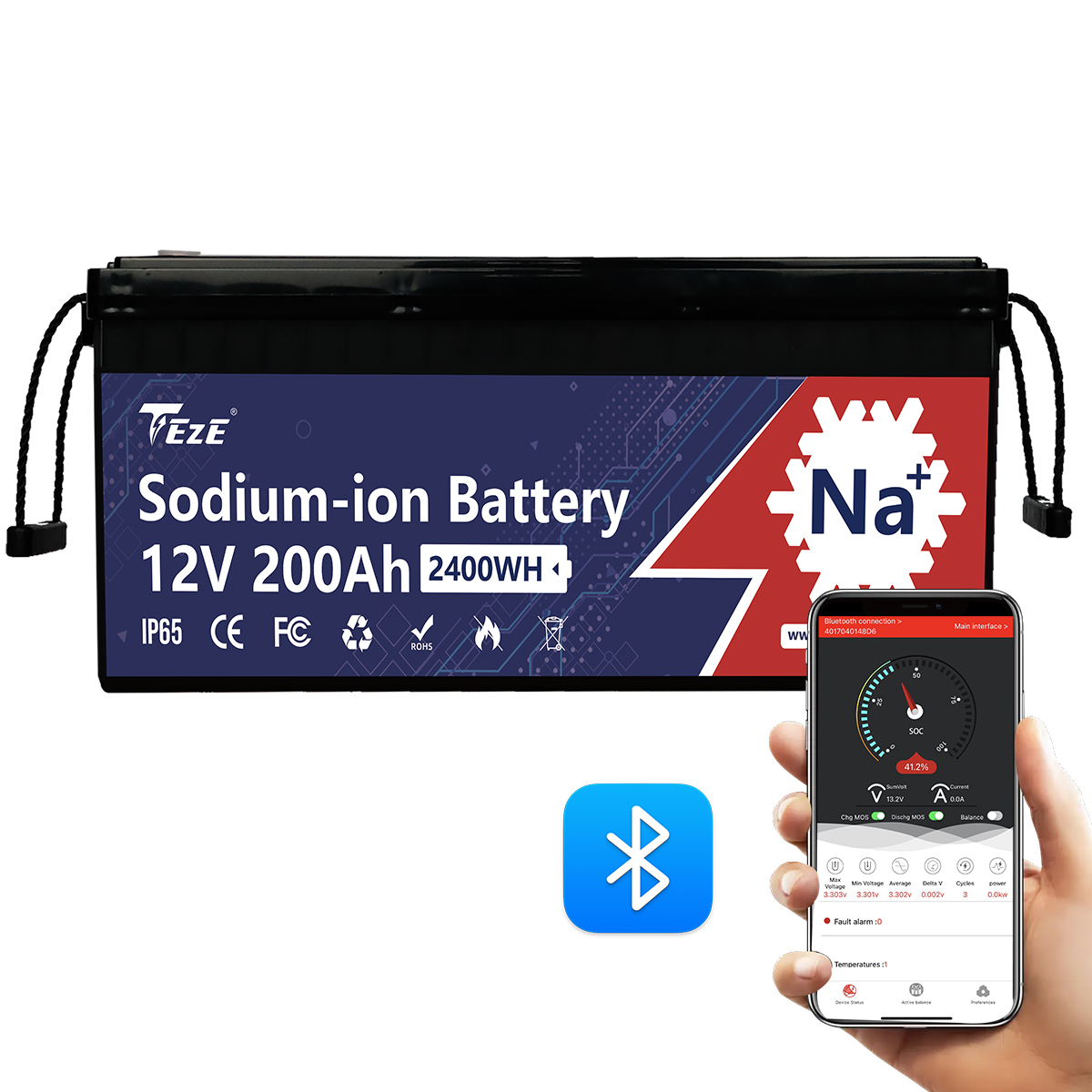

Regarding the activation and deactivation of Bluetooth functionality, if you do not use the battery, the Bluetooth function will automatically turn off, and it will not produce radiation for you. To reconnect Bluetooth, simply activate the battery after charging or discharging, and then you can reconnect Bluetooth.
| Android-APP Download |
APPLE-APP Download |
 |
 |
(3) There are safety devices in the battery pack. To ensure safety, do not dissect or change the structure of the battery;
(4) It is forbidden to directly connect the positive and negative terminals with metal;
(5) It is strictly forbidden to immerse the battery in water;
(6) It is strictly forbidden to drop, impact, squeeze, or puncture the battery;
(7) If the battery pack is not used for 3 months, please put the battery pack fully. When it is not in use, it should be placed in a cool and dry environment.
Contact us:
More any questions about TezePower Battery?
Email: service@tezepower.com
