30kWh All-in-One Solar LiFePO4 Energy Storage System

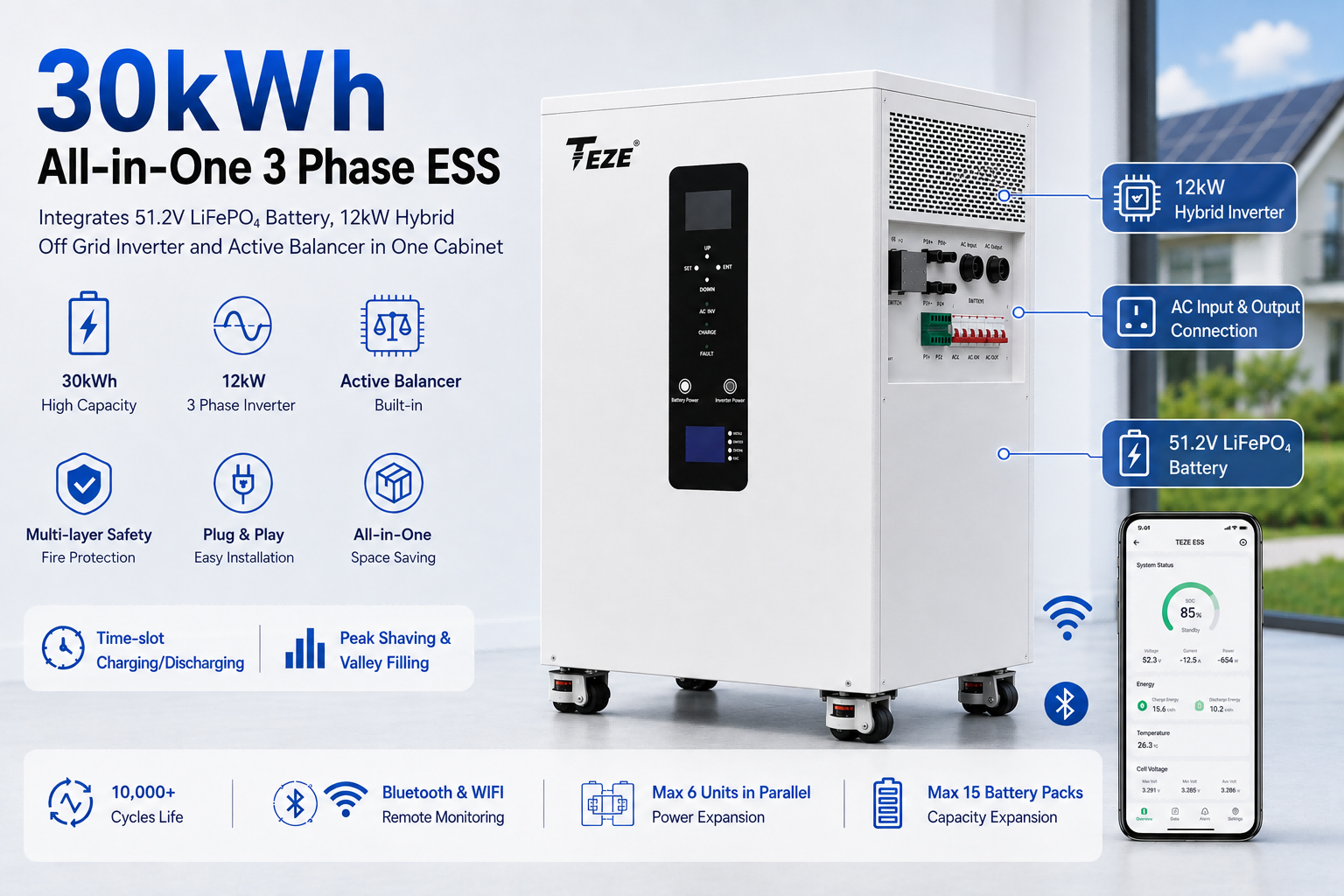

The TezePower 51.2V 587Ah 30kWh All-in-One LiFePO4 ESS combines a high-capacity battery system with a built-in 12kW AC380V three-phase off-grid inverter in one integrated solution.
With approximately 30kWh of energy storage capacity, this system is designed for home solar storage, backup power and off-grid energy applications.
By integrating the battery and inverter into one system, the All-in-One design helps simplify installation, reduce separate components and save installation space.
A variety of charging methods, which can be charged with photovoltaic or mains power, or both at the same time.
Note: Grid charging is supported, but the system does not feed power back to the utility grid.
Free Shipping & tax, Free duties, don't need to pay any other fees!
✅ 30kWh All-in-One 3-Phase ESS – Combines a 51.2V 587Ah LiFePO4 battery and a built-in 12kW three-phase inverter in one compact cabinet, delivering integrated energy storage and power conversion for residential solar and off-grid applications.
✅ Premium Grade A+ LiFePO4 Battery with 10,000+ Cycle Design Life – Designed for long-term home energy storage, the 30kWh battery provides high-capacity energy storage for daily use and backup power. Its specified cycle life of over 10,000 cycles is based on defined test conditions.
✅ Advanced Active Cell Balancing – The smart 300A BMS works with active balancing technology to help equalize cell voltages, reduce cell-to-cell voltage differences and support consistent battery performance over time.
✅ Intelligent Multi-Source Charging with Dual MPPT – Supports solar charging, grid charging and simultaneous charging from both sources, subject to system configuration. Two independent MPPT trackers support up to 18kW total PV input for flexible solar array design. Grid charging is supported, but feeding power back to the utility grid is not.
✅ Peak Shaving & Valley Filling for Smarter Energy Use – Scheduled charging and discharging help you store energy during off-peak periods and use stored energy during peak-rate periods, supporting more efficient energy management and potential electricity cost savings.
✅ Multi-Layer Safety with Built-in Fire Suppression – The temperature-sensitive fire suppression device adds an extra layer of protection inside the battery cabinet, working alongside BMS monitoring and electrical protection functions to support safer system operation.
✅ Smart Bluetooth BMS & Optional WiFi Monitoring – Monitor battery status through the BMS App, including available battery operating data. An optional inverter WiFi module enables remote inverter monitoring, helping you keep track of system operation more conveniently.
| MODEL | AO-MB51587-AC380V-12KW-EU |
| BATTERY TECHNICAL SPECIFICATION | |
| Battery model | MB51587-300A-HWB |
| Number of batteries | 1 |
| Battery Energy | 30kWh |
| Battery Capacity | 587Ah |
| Battery Type | LiFePO4 |
| Battery Rated Voltage | 51.2V |
| Battery Working Voltage Range | 44.8~57.6V |
| Maximum Charging Current | 300A |
| Maximum Discharging Current | 300A |
| Designed Life-span | >10000 Cycles @0.2C/25℃ |
| INVERTER TECHNICAL SPECIFICATION | |
| Inverter model | SPI-12K-H3P |
| PV CHARGE | |
| Solar Charge Type | MPPT×2 |
| Maximum Input Power | 9000W / 9000W |
| PV Charging Current Range | 22A + 22A |
| PV Operating Voltage Range | 800Vdc / 800Vdc |
| MPPT Voltage Range | 200–650Vdc |
| AC CHARGE | |
| Frequency Range | 50/60Hz |
| Input Voltage Range | Phase voltage 170~280V, Line voltage 305~485V |
| Bypass Overload Current | 35A |
| AC OUTPUT | |
| Rated Output Power | 12000W |
| Max. Peak Power | 24000W |
| Rated Output Voltage | 230/400Vac (Three-Phase) |
| Load Capacity of Motors | 6HP |
| Rated AC Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Switch Time | 10ms (typical) |
| BATTERY INVERTER OUTPUT | |
| Rated Output Power | 12000W |
| Maximum Peak Power | 24000W |
| Power Factor | 1 |
| Rated Output Voltage (Vac) | 230/400Vac (Three-Phase) |
| Frequency | 50Hz±0.3Hz / 60Hz±0.3Hz |
| Auto Switch Period | <15ms |
| THD | <3% |
| GENERAL DATA | |
| Protection Degree | IP20, Indoor Only |
| Operating Temperature Range | -15~55℃, >45℃ derated |
| Noise | <60dB |
| Cooling Method | Internal Fan |
| COMMUNICATION | |
| Embedded Interfaces | RS485 / CAN / USB / Dry contact |
| External Modules (Optional) | Wi-Fi / GPRS |






Precautions
•No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuits.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Prohibited Matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, or electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, and wires).
