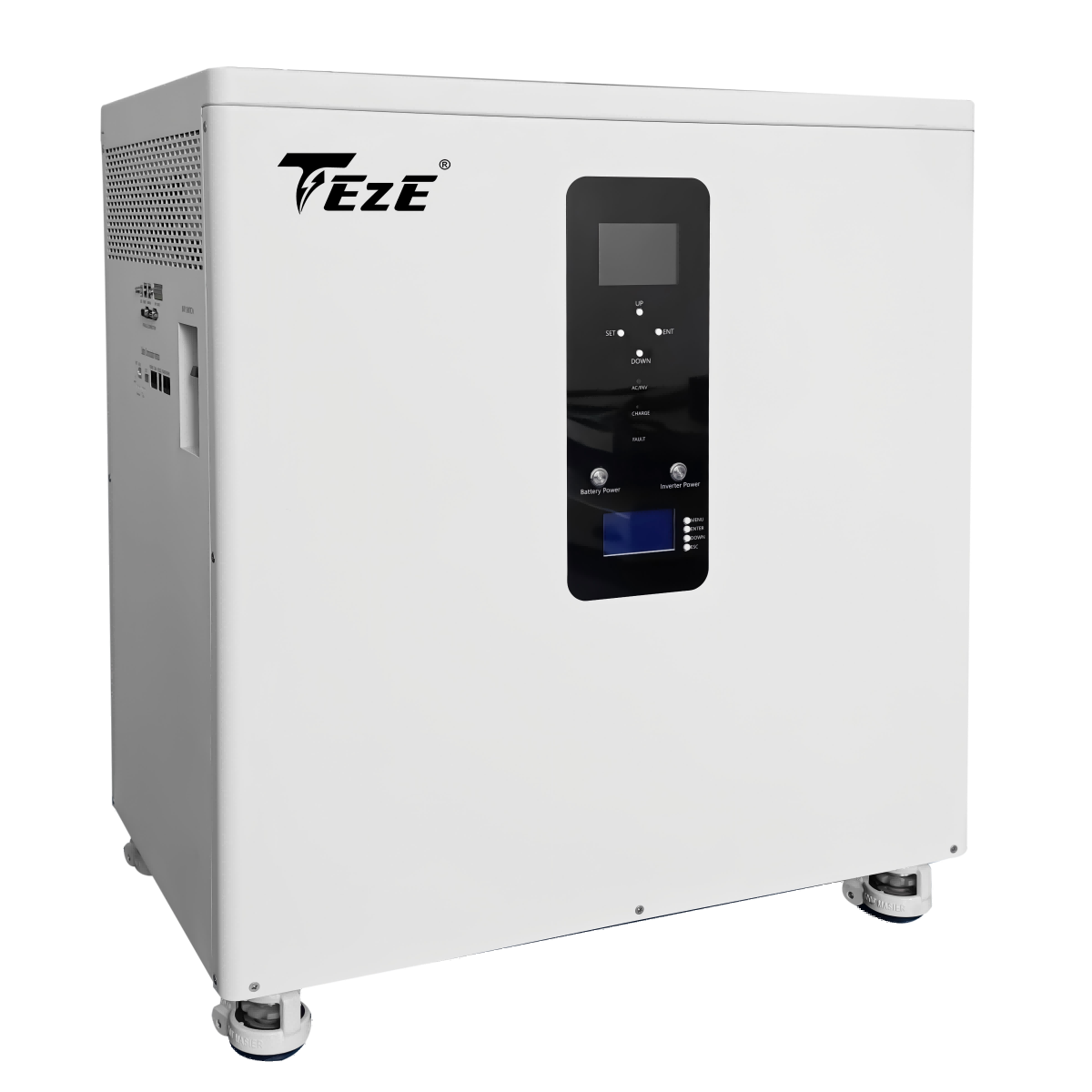

TezePower 32kWh All-in-One LiFePO4 Battery with 12kW 3-Phase Off-Grid Inverter
The TezePower 32kWh All-in-One Energy Storage System combines a 51.2V 628Ah LiFePO4 battery with a built-in 12kW three-phase hybrid off-grid inverter in one integrated cabinet.
Designed for European homes, solar energy storage and off-grid applications, it provides high-capacity battery storage, three-phase AC power and flexible energy management in a convenient Plug & Play system.
Key Features
-
32kWh / 51.2V 628Ah LiFePO4 Battery – High-capacity energy storage for homes with high electricity demand.
-
Built-in 12kW 3-Phase Off-Grid Inverter – Up to 24kW peak output for reliable three-phase home and off-grid power.
-
Intelligent Multi-Source Charging – Supports charging from solar PV, grid power, or both simultaneously.
-
Off-Grid Design – Supports grid charging but does not support feeding electricity back to the public grid.
-

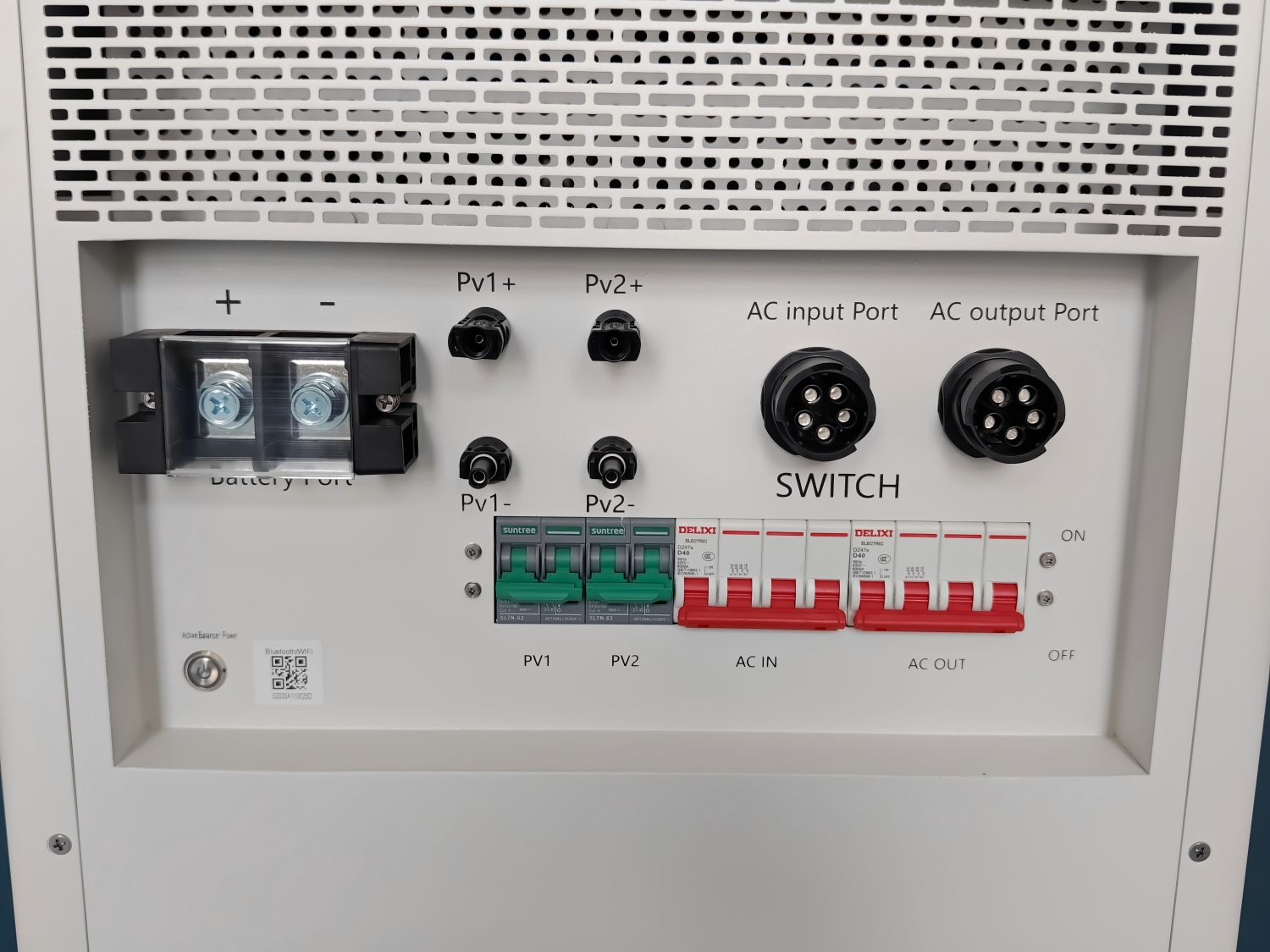

Dual MPPT – Two independent MPPT inputs for flexible solar PV configuration.
-
Peak Shaving & Valley Filling – Time-slot charging and discharging helps make better use of peak and off-peak electricity prices.
-
Smart BMS with Bluetooth – Monitor battery operating data through the BMS monitoring system and mobile app.
-
Optional WiFi Module for Inverter Monitoring – The WiFi module provides remote monitoring of inverter operating data through its dedicated app.
-
Built-in Active Balancer – Helps maintain cell voltage balance and improve battery performance.
-
Built-in Fire Extinguisher – Temperature-sensitive fire protection provides an additional layer of safety.
-
Plug & Play All-in-One Design – Battery and inverter are integrated into one cabinet for easier installation.
-
Mobile Design – Built-in wheels make the system easier to move and position.
Intelligent Multi-Source Charging
The 32kWh All-in-One ESS supports three charging modes:
Solar Charging
Charge the battery directly from solar PV energy.
Grid Charging
Charge the battery using utility grid electricity when required.
Solar + Grid Charging
Use solar and grid power simultaneously to provide greater charging flexibility.
Important: This system supports charging from the public grid but does not support exporting electricity back to the public grid.
Peak Shaving & Valley Filling
The built-in time-slot charging and discharging function allows users to schedule battery operation according to electricity tariffs.
Store energy during lower-cost periods and use stored energy during higher-cost periods to improve energy management and potentially reduce electricity costs.
Smart Battery Monitoring
The integrated Smart BMS provides battery monitoring and protection functions.
The BMS supports Bluetooth monitoring, allowing users to check battery operating data through the corresponding mobile app.
An optional WiFi module is available for inverter monitoring. The WiFi module uses its dedicated app to remotely view inverter operating data.
This means the battery BMS monitoring and inverter WiFi monitoring are two separate monitoring functions.
Built-in Active Balancing & Fire Protection

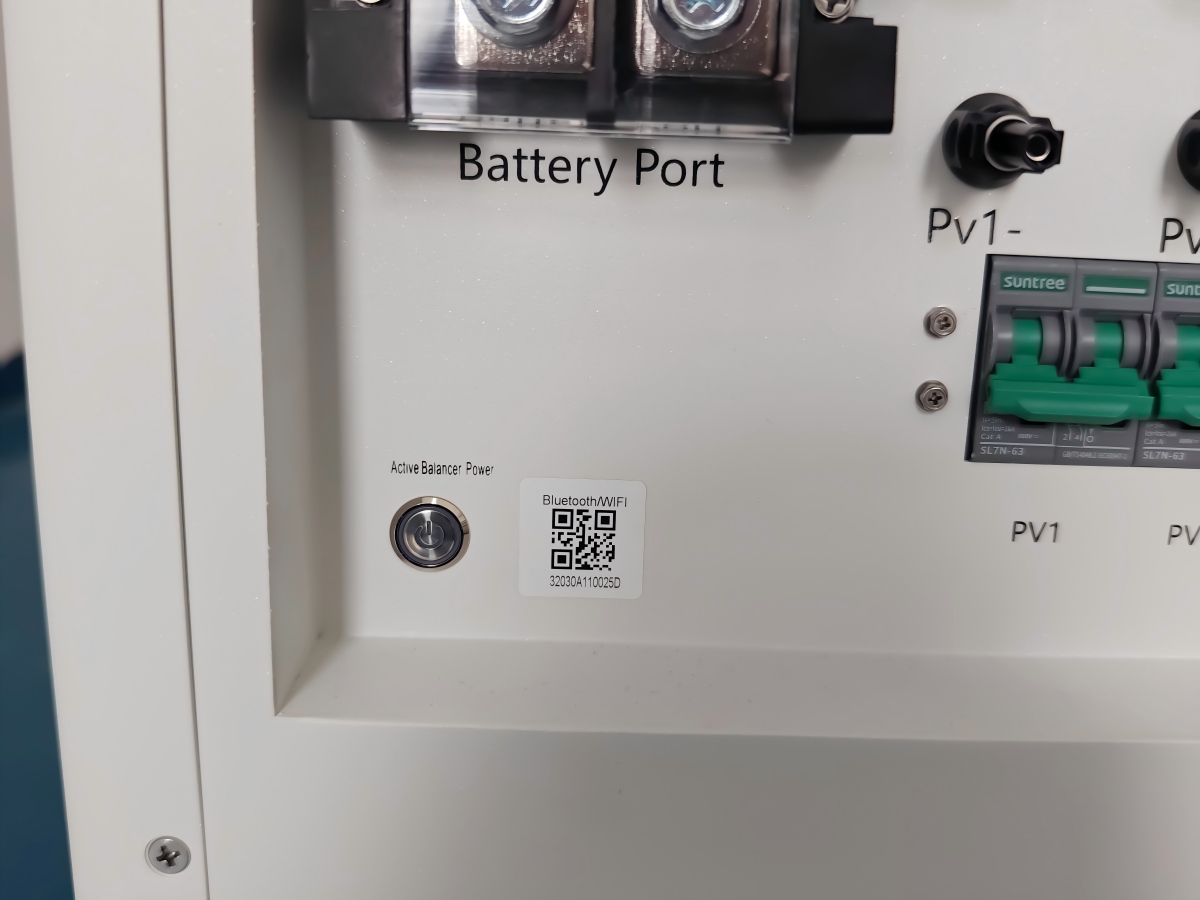

The battery includes a built-in active balancing module to help maintain voltage balance between cells.
For additional safety, the system also features a temperature-sensitive built-in fire extinguisher designed to provide automatic thermal-triggered fire protection.
12kW Three-Phase Hybrid Off-Grid Inverter
The integrated 12kW three-phase inverter provides 230/400V AC output and supports up to 24kW peak power.
With dual MPPT and up to 18kW total PV input, it is designed for larger residential solar PV systems.
The system can supply household loads from solar energy, stored battery power or the grid according to the selected operating mode.

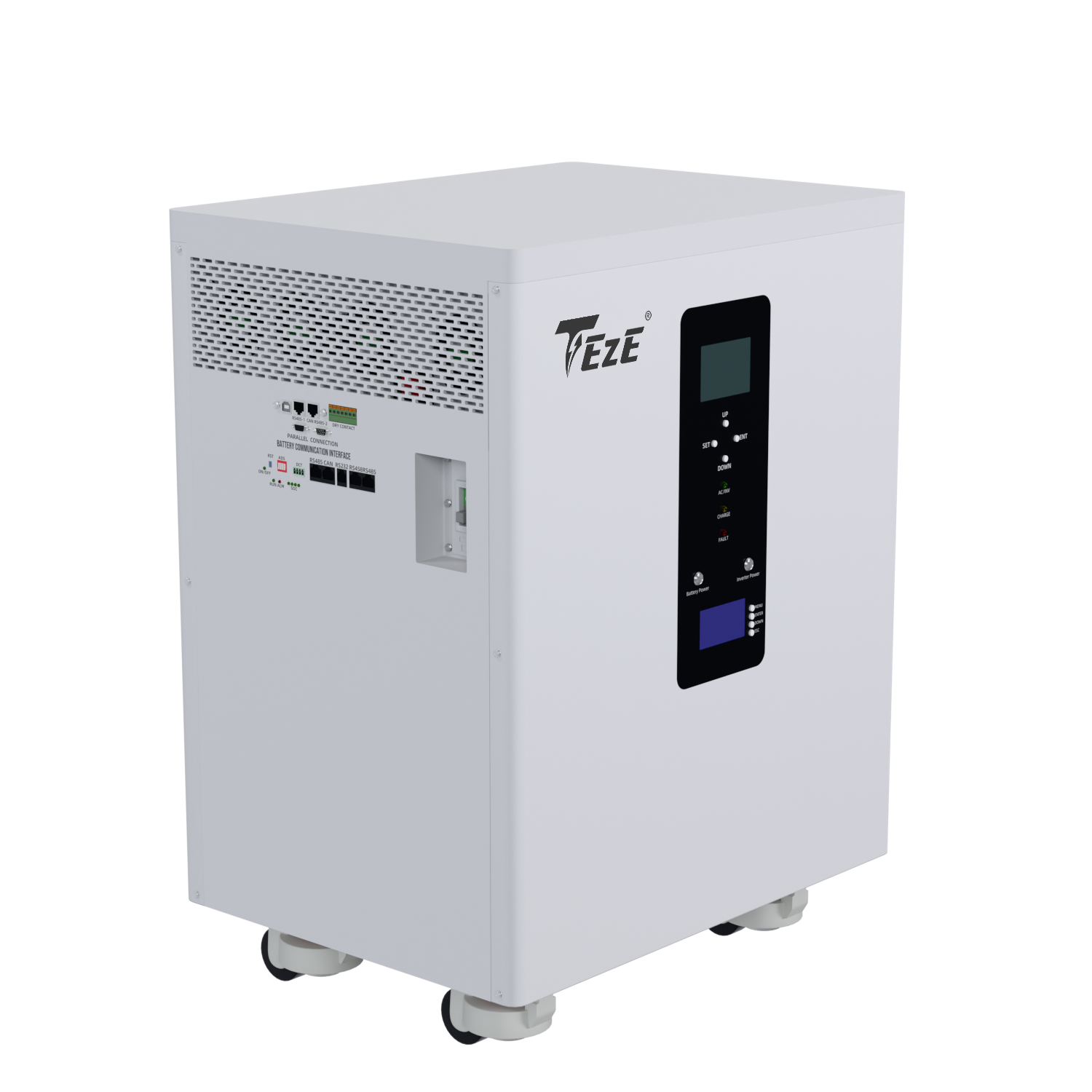

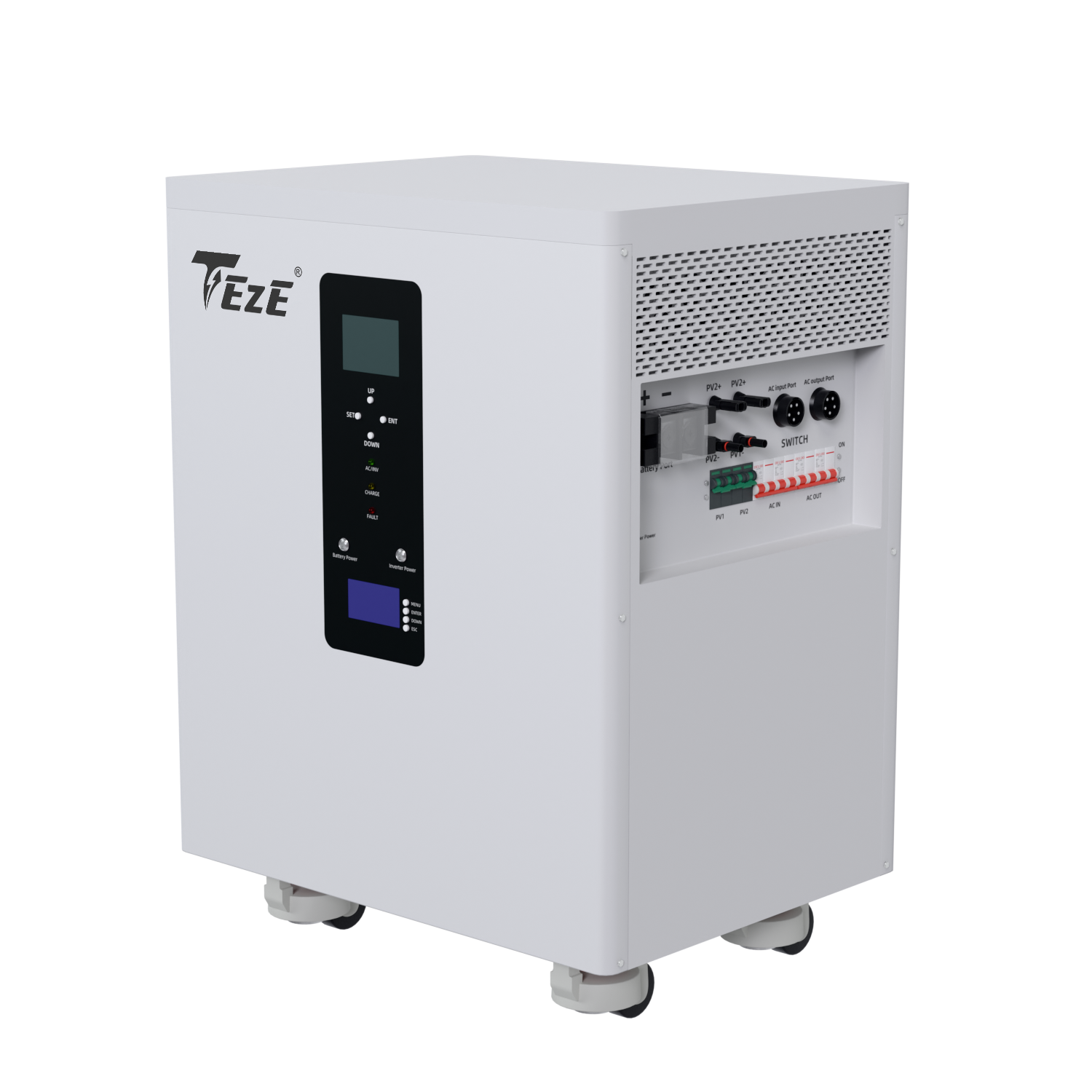

Plug & Play All-in-One Design
The battery and inverter are integrated into one cabinet, reducing the need for separate battery and inverter installation.

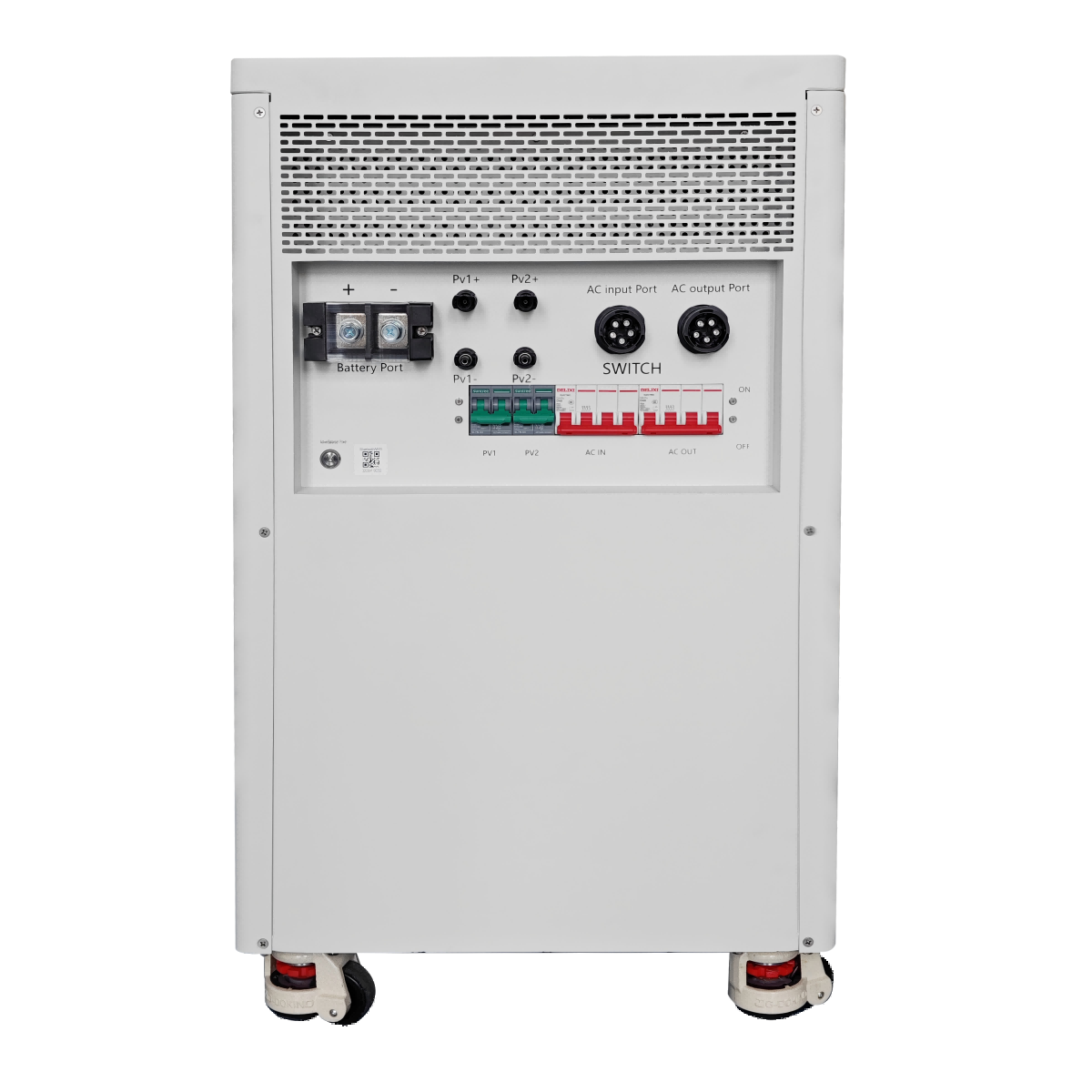

The Plug & Play design simplifies system wiring and installation, while the built-in wheels make the unit easier to move into position.
Available Capacity Options
The same 12kW three-phase All-in-One system is available in:
-
28kWh – 51.2V 560Ah
-
30kWh – 51.2V 587Ah
-
32kWh – 51.2V 628Ah
The 32kWh / 628Ah version provides the highest storage capacity for larger homes and higher energy requirements.
Applications
The TezePower 32kWh All-in-One ESS is suitable for:
-
Three-phase home solar storage
-
Off-grid power systems
-
Home backup power
-
Solar self-consumption
-
Peak shaving and load shifting
-
Time-of-use energy management
-
High-power household loads
-
Remote homes, farms and cabins
-
Small commercial applications
Installation
The system is designed for indoor installation. Installation should be completed by a qualified professional according to local electrical regulations and the supplied installation instructions.
| MODEL | AO-MB51628-AC380V-12KW-EU | AO-MB51560-AC380V-12KW-EU | ||
| BATTERY TECHNICAL SPECIFICATION | ||||
| Battery Model |
MB51628- 300A-HWB
|
MB51560- 300A-HWB
|
||
| Number of Batteries | 1 | |||
| Battery Energy | 32kWh | 28kWh | ||
| Actual Total Battery Capacity | 628AH (Using Grade A+314Ah LiFePO4 Cells；16S2P) | 560AH | ||
| Weight | 238KG | 238KG | ||
| Dimension L×D×H(mm) | 750*500*845mm | 750*500*845mm | ||
| Battery Type | LiFePO4 | |||
| Battery Rated Voltage | 51.2V | |||
| Battery Working Voltage Range | 44.8～57.6V | |||
| Maximum Charging Current | 300A | |||
| Maximum Discharging Current | 300A | |||
| DOD | 80% | |||
| Designed Life-span | >6000 Cycles @0.2C/25℃ Charging/Discharging at 80%DOD,Until 80%Capacity. | |||
| INVERTER TECHNICAL SPECIFICATION | ||||
| Inverter model | SPI-12K-H3P | |||
| PV CHARGE | ||||
| Solar Charge Type | MPPT*2 | |||
| Maximum Input Power | 9000W/9000W | |||
| PV Charging Current Range | 22A+22A | |||
| PV Operating Voltage Range | 800Vdc/800Vdc | |||
| MPPT Voltage Range | 200-650Vdc | |||
| AC CHARGE | ||||
| Frequency Range | 50/60Hz | |||
| Input Voltage Range | phase voltage 170~280V,line voltage 305~485V | |||
| Bypass Overload Current | 35A | |||
| AC OUTPUT | ||||
| Rated Output Power | 12000W | |||
| Max.Peak Power | 24000W | |||
| Rated OutputVoltage | 230/400Vac(three-phase) | |||
| Load Capacity of Motors | 6HP | |||
| Rated AC Frequency | 50/60Hz | |||
| Waveform | Pure Sine Wave | |||
| Switch Time | 10ms(typical) | |||
| BATTERY INVERTER OUTPUT | ||||
| Rated Output Power | 12000W | |||
| Maximum Peak Power | 24000W | |||
| Power Factor | 1 | |||
| Rated OutputVoltage (Vac) | 230/400Vac(three-phase) | |||
| Frequency | 50Hz±0.3Hz/60Hz±0.3Hz | |||
| Auto Switch Period | <15ms | |||
| THD | <3% | |||
| GENERAL DATA | ||||
| Protection Degree | IP20,Indoor Only | |||
| Operating Temperature Range | -15~55℃,>45℃ derated | |||
| Noise | <60dB | |||
| Cooling Method | Internal Fan | |||
| COMMUNICATION | ||||

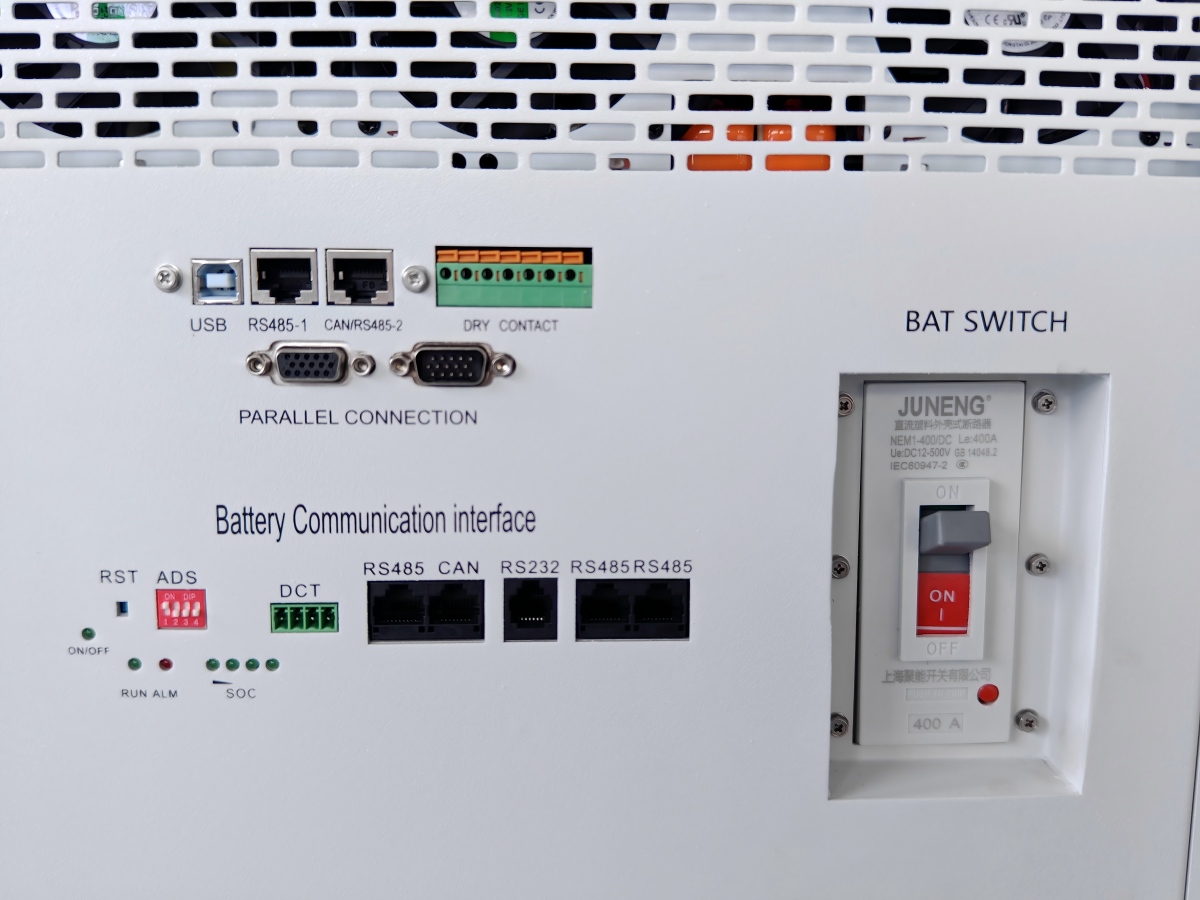

| Embedded Interfaces | RS485/CAN/USB/Dry contact | |||
| External Modules(Optional) | Wi-Fi/GPRS | |||
Precautions
•No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuits.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Prohibited Matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, or electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, and wires).
